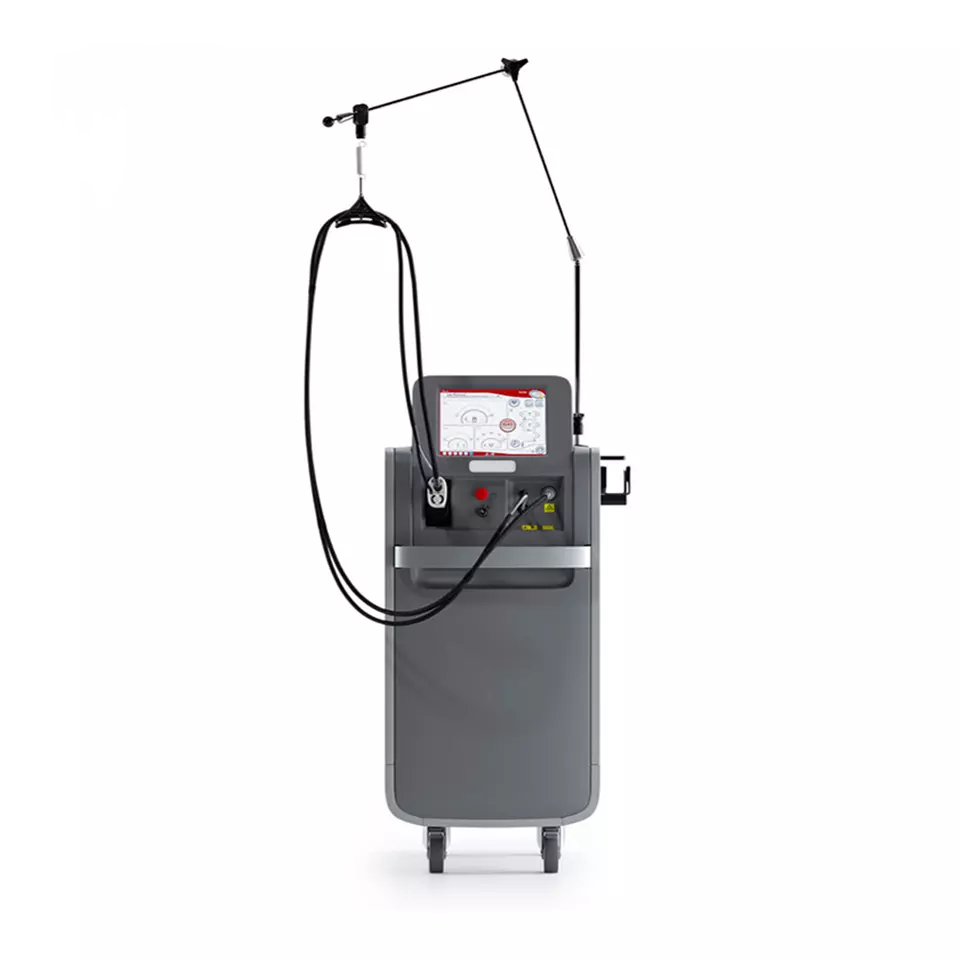

GentleMax Pro
GentleMax Pro combines 755 nm Alexandrite and 1064 nm Nd:YAG lasers in a dual-wavelength platform. Its touchscreen interface supports saved parameters and guided setup.
- Category
- Hair Removal
- Series
- Long-Pulsed Laser
- 产品分类
- 脱毛设备 / 长脉冲激光系列
PRODUCT OVERVIEW
At a glance
- 755 nm Alexandrite and 1064 nm Nd:YAG laser wavelengths.
- Touchscreen parameter selection and storage.
- Guided Mode assists with the setup sequence.
- A 1.5/3.0 mm specialty delivery option and air-cooling or DCD configurations; contact our team to confirm the supplied options.
- Item No.: G-Max Pro.
TECHNICAL DETAILS
Specifications
| Item No. | G-Max Pro |
|---|---|
| Laser Type | ND:YAG / Alexandrite |
| Wavelength | 1064nm / 755nm |
| Repitition | Up to 10 Hz(1064nm ) / Up to 10 Hz(755 nm ) |
| Pulse Duration | 0.250 ms - 100 ms |
| Max Delivered Energy | 60joules(J) ~ 110joules(J) |
| Spot Size | 3mm, 12mm, 16mm (Optional 6mm, 9mm, 18mm) |
| Beam Delivery | Lens-coupled optical fiber with handpiece |
| Pulse Contral | Finger switch, foot switch |
| Display System | 10.4inch screen touch screen |
| Electrical | 200-240 VAC, 50/60Hz, 30A, 4600 VA single phase |
| Cryogen | HFC 134a |
| DCD Spray Duration | User adjustable range: 10-100ms |
| DCD Delay Duration | User adjustable range: 3, 5, 10-100ms |
| DCD Post Spray Duration | User adjustable range: 0-20ms |
| Package size | 1080mm*1000mm*514mm |
| Gross weight | 118kg |
EXPLORE FURTHER
Product resources
Original product information ↗
For configuration, availability and technical documentation, please contact the NOUFIL team.
